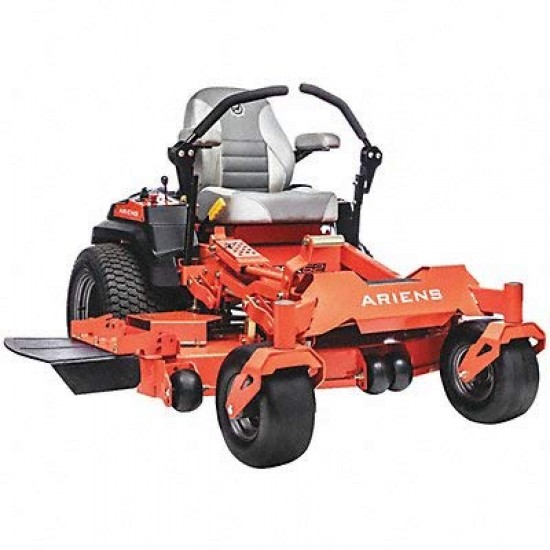

Features for the Ariens APEX 60

Become the envy of your neighborhood with the Ariens IKON XL Series. The power and size of the IKON XL series will allow you to cut any size lawn with great ease and leave it looking professionally done. This XL-60 is the 60'' deck edition and is equipped with a Kohler 7000 series engine.

Top-Tier Zero Turn for Prosumer & Large Acreage cutters

The Ariens APEX series provides commercial performance so that you can cut your mowing time in half and allow your lawn maintain a professional look. The APEX 60 features a 60'' deck and a Kohler 7000 series engine to give you a machine that has the size, power and durability of commercial equipment. Increased protection at heavy wear points works to extend the life of the Apex. Ride in style with the Apex's modern and sleek appearance.

Extra features provide increased comfort and efficiency to make mowing even easier and more relaxing. Your neighbors don't stand a chance in competition.

• Kohler 7000 Series Engine:Maximum cutting power is available with the Kohler 7000 Series engine that allows you to breeze through your lawn quickly.
• Constant Belt Tension System (CBT):Provides constant belt tension. Reduces wear and heat while increasing overall belt life and requires minimal adjustment.
• 10-Gauge Welded Deck:A 5 1/2 inch deep design with a reinforced leading edge provides sufficient airflow for tough mowing conditions.
• Industry Leading Frame Design:Tubular frame rail provides excellent support to the machine.
• Aluminum Spindles:Reduced bearing temperature provides cooler operation. Spindles are maintenance-free.
• Flip-Up Discharge Chute:Reduces damage to the surrounding environment.
• Foot-Operated Deck Lift System:Effortlessly adjust between 15 different cutting positions in 1/4'' increments with vertical pin selection.
• Large Tires:Provide better traction and a smoother ride overall.
• High Back Seat:Padded arm rests and a high back provide greater comfort and help to reduce fatigue during long mowing sessions.
• Removable Rear Wrap:Easily remove the rear wrap in minutes to access engine maintenance items.
• Roll Over Protection System (ROPS) Compatible:Supports a ROPS option to provide additional protection to the operator.

Technical Specs for the Ariens APEX 60

Engine Specification
Engine Brand : Kohler 7000 Series
Power : 25 HP
Displacement(cc) : 725 cc
Fuel Capacity : 5 gallons (18.9 liters)

Engine
Starting System : Electric Starter

Drive System
Drive Type : Hydro-Gear ZT3100 Transaxles
Speed : 8 mph foward/4 mph reverse

Cutting Deck
Cutting Deck Material : 10ga Steel
Spindles : 3 Aluminum Spindles
1'' Dia. Steel Spindle Shaft
Ball Bearing Spindle Bearings
Deck Lift System : Foot Operated
Cutting Width : 60''
Cutting Height (min-max) : 1.5''-5''

Features
Seat Back Height : High Back w/ seat springs, lever adjust, arm rests
Hour Meter : Standard

Dimensions
Weight (lbs.) : 853 lbs.
Length (in.) : 74.5''
Width (in.) : 62.8'' (without chute)
Height (in.) : 42''

Warranty
Residential Warranty : Unit: 3 year limited consumer/1 year commercial
Deck Shell & Frame: 5 year limited deck shell & frame
