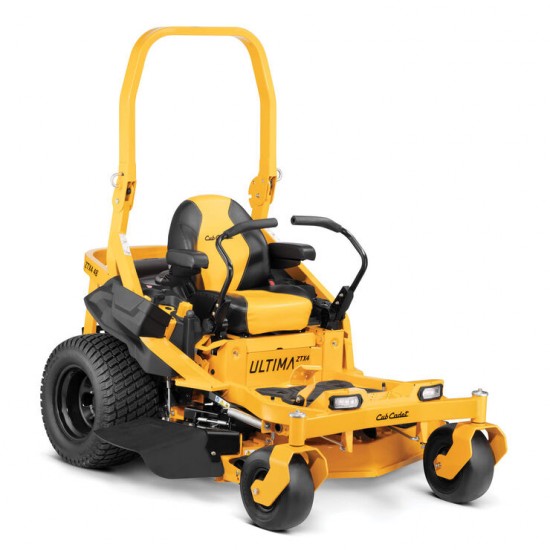

Cub Cadet Ultima ZTX4 (48) 23HP Kohler Zero Turn Mower

Cub Cadet Ultima ZTX4 (48) 23HP Kohler Zero Turn Mower

Price:

US $3,036.00

SKU:

SPT7008ZTX44823K

Brand:

Cub Cadet

Condition:

New

Weight:

0.00 LBS

Availability:

In Stock

Shipping:

Calculated at checkout

Product Description

Features

23HP/725cc Kohler 7000 Series V-Twin OHV 4-Cycle Engine
Pressure lubrication increases engine life
Consistent-Cut™ technology maintains engine speed
Designed to run cooler and cleaner for longer
Dual Hydro-Gear™ ZT-3100™ Hydrostatic Drive System
Delivers responsive maneuverability and a smoother ride
Provides optimal torque and speeds up to 8 MPH
48-Inch, Fabricated (Welded) 3-Blade Mower Deck
Features Cub Cadet's best-in-class Aeroforce Max™ cutting system
Top discharge deck allows for an elite bagging performance
17 cut heights ranging from 1"-5"
Includes a lock-out position for transport
A Real Steel
Durable squared tubular steel frame design
Steel frame provides a better cut and trim quality
Corrosion protected with a Triple Guard Corrosion Defense System™
Adjustable Lap Bars
Accommodates riders of all shapes and sizes
Ultra-Premium High Back Seat w/ Cushioned Arm Rests
Ergonomic, comfortable 20" high-back seat with suspension
Includes a ball-bearing seat slide and seat isolators
Fully adjustable and optimized to reduce riders fatigue
Maintenance Made Easy
Conveniently locate the battery under the seat
Easily reach filters, spark plugs and oil with the open frame
Easily access the external oil filter
Removeable floorboard
Turf Master Tires
Larger 22" x 12" tires provide excellent traction and a smoother ride
Distribute weight evenly - great for uneveven surface types
Increased traction on slopes and in wet conditions
LED The Way
Features dual-LED headlights for unmatched visibility in low light
Roll-Over-Protection (ROPS) Capable
Provides additional safety benefits by reducing the risk of injury
Engine
Engine Brand Kohler®

Engine Model KT - Pro 7000 series

Engine Displacement 725cc

Engine Output 23 hp

Starter Type Key

Fuel Tank Capacity 5.5 gal.

Cylinders/Material Twin

Engine Oil Capacity 2.0 qts

Lubrication Fully pressurized

Charging System 12 Amp Regulated

Governor Manual

Choke Choke-a-matic

Air Filter Dual element

Oil Filter Yes
Battery
Battery 12V 230 cold crank amps
Drive System
Transmission Hydro-Gear ZT 3100

Forward Speed 8 MPH

Reverse Speed 3.5 MPH

Rear Axle 1"

Transmission Housing Cast aluminum

Transmission Type Hydro-Gear ZT 3100
Cutting Deck
Deck Cutting Width 48"

Cutting Modes Discharge/mulch/bagging

Deck Material 10-gauge AeroForce Max™ fabricated steel / double plate reinforced spindle mounts / 7-gauge side wraps /skid plate

Deck Attach/Removal Removeable

Deck Engagement (PTO) Pull knob (electric)

Deck Construction Fabricated

Spindle Construction Sealed cast aluminum housing (Maintenance free)

Blade(s) 3

Deck Lift Foot pedal with Dial Adjust

Cutting Height Range 1" - 4.75", 5" transport

Anti-Scalping 2 ball, 1 nose

Deck Positions 16 positions and transport position
Chassis
Frame 1.5" x 3" tubular steel frame

Front Axle Fabricated steel

Turning Radius 0"

Front Tires 13"x6.5"-6"

Rear Tires 22"x12"-12"

Tire Tread Turf Master/Multi Trac

ROPS Included

Rear Tow Hitch Included

Corrosion Protection Triple Guard Corrosion Defense System™

Yokes 5/16” steel
Controls
Brakes Lap bar integrated

Steering Control Lap Bars

Display Hour meter
Comfort
Seat Type 20" high back seat

Armrests Included

Seat Suspension Advanced polymer

Seat Adjustment Lever

Floor Mats Rubber

Steering Comfort Quick adjustable (no tools) Soft Touch lab bars
Additional Specifications
Mulch Kit Optional

Headlight(s) 2 - LED

Discharge Chute Included

Cup Holder Included

Operator Presence System Included

Bagger Optional

Model Number 47RSAAA6010
Specifications
Series Ultima Series™ ZTX
Warranty
Warranty 4-year/500 hour warranty

Frame Warranty Limited lifetime warranty

Deck Shell Warranty Limited lifetime warranty
