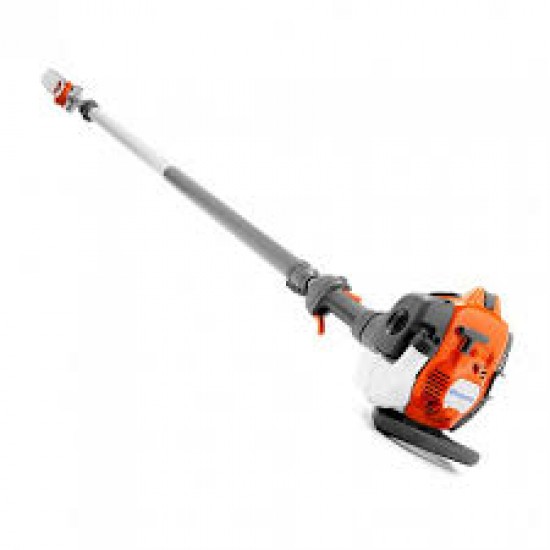

Features for the Husqvarna 525RJX

The Husqvarna 525RJX is a combination brush cutter and string trimmer that makes challenging yards much more manageable. Use a grass or trimmer head with the cutting attachment guard. Quick, adjustable handles and an included harness, make for easier operation. Why buy two machines when you can get the job done with one, the Husqvarna 525RJX.

• Smart Start:The engine and starter have been designed so the machine starts quickly with minimum effort.
• Auto Return Stop Switch:When the machine is turned off, the stop switch automatically returns to the start position for easier starting.
• Versatile Trimmer / Cutter:The 525RJX can be outfitted with a trimmer head or a grass blade. Both come standard with the 525RJX.
• E-TECH II Engine:Exhaust emissions are reduced without compromising power.
• Versatile Guard:The cutting attachment guard can be used with either a grass blade or a trimmer head.
• Grass Bevel Gear:Bevel gear designed with high torque and the cutting equipment parallel to the ground for best cutting performance.
• Ergonomic and Adjustable Handle:Adjustable and ergonomically designed soft-grip handle and handlebar for best comfort. It also features a barrier bar for increased stability during operation.
• Tap 'n Go Trimmer Head:Twin line cutting system with Tap 'n Go for quick line feed.
• Air Purge:Removes air from carburetor and fuel system for easy starting.
• Standard Single Harness:A standard harness is included, perfect for lighter brush cutters.

Technical Specs for the Husqvarna 525RJX

Engine
Torque:Max: 1.2 Nm
Max at rpm: 6000 rpm
Displacement(cc):25.4 cc
Power:1.34 HP
Fuel Capacity:17.25 fl oz.

Engine Specification
Maximum Power Speed:8500 rpm
Fuel Consumption:600 g/kWh
Idling Speed:3000 rpm
Spark Plug:NGK BPMR8Y
Electrode Gap:0.03 in
Clutch Engagement Speed:4000 rpm

Equipment
OEM Grass Blade:Grass 255-4
OEM Harness:Single harness
OEM Trimmer Head:T35 M10

Emission, Vibration and Noise
Sound Power Level, Gauranteed (LWA):106 dB(A)
Sound Pressure Level at Operator's Ear:94 dB(A)
Vibration Level (ahv, eq) front / rear handle:Front: 2.1 m/s²
Rear: 1.9 m/s²

Transmission
Gear Ratio:19
Drive Gear Angle:30 °

Emission, Vibration and Noise
Exhaust Emissions (CO average):87.57 g/kWh
Exhaust Emissions (NOx average):0.56 g/kWh

Dimensions
Weight (lbs.):9.48 lbs.
Tube Length:58.39 in
Tube Diameter:0.94 in
