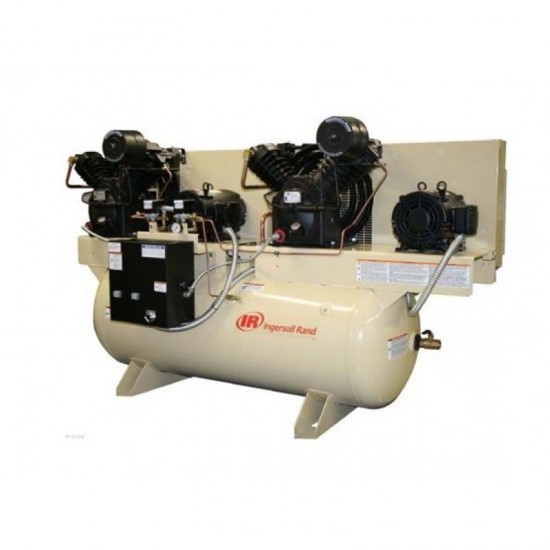

Loading... Please wait...Protect your business from unproductive and expensive downtime! The Ingersoll Rand Duplex Reciprocating Compressor offers two individual 2-stage pumps and two motors mounted on a single 120-gallon horizontal tank, providing 100% built-in backup (you'll have a motor and pump running even when one is down) or additional air power for large-capacity jobs. Features the legendary T30 pump with value-added features in a space-saving design. 175 max. PSI, 230V, three-phase. Requires two Ingersoll Rand start-up kits, Item# 1592008 (sold separately).
| Item# | 653476 |
| Brand | Ingersoll Rand |
| Manufacturer's Warranty | 12 months parts / 12 months labor |
| Ship Weight | 1250.0 lbs |
| CFM at 175 PSI | 34.2 |
| HP | 5 (2) |
| Volts | 230 |
| Motor Phase(s) | 3 |
| Max. PSI | 175 |
| Tank Type | Horizontal |
| Air Tank Size (gal.) | 120 |
| Stage | 2 |
| Drive | Belt |
| Pump | Cast iron, splash-lubricated |
| Duty Cycle | 100% |
| Pump Life (hrs.) | 10,000 |
| Dimensions L x W x H (in.) | 82 x 33 x 48 |
