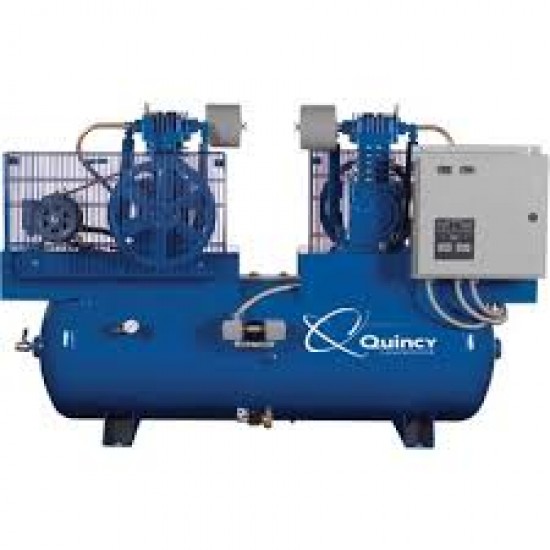

Heavy-duty industrial 2-stage duplex air compressor systems protect your business from expensive downtime! The duplex compressor includes two compressors and two motors mounted on an ASME horizontal tank. Each system can be run independently or together, should your air demand require it. Works in applications from intermittent duty to 100% duty requirements. 1-year limited warranty without extended warranty kit purchase. Purchase two extended warranty kits (Item# 42637, one for each compressor) at the same time (on the same receipt) as your Quincy 80-gallon duplex air compressor and register online within 10 days of receipt, and it will double the package warranty to 2 years and triple the pump warranty to 3 years (parts and labor). U.S.A.

• 5 HP motor
• 460 (2480)V, 3 Phase
• 7.6 Amps per motor, 15.2 Amps total
• 80-gallon tank
• Provides up to 175 PSI and delivers 34.4 CFM when both pump/motor systems are operating
• Solid-state circuitry control panel with two I.E.C.-rated magnetic starters and auxiliary contacts
• Thermal overload protection
• One 120 VAC control transformer
• Automatic alternation with lead/lag

• Green LED Power On indicators
• Compressor Run indicators
• Test/off/run rocker switches
• Lead select/auto switch
• Hour meters
• Red LED motor fault indicators
• Fault/shutdown alarm contacts for start/stop operation
• Single point incoming power connection
• Comes with oil in the compressor pumps, ready for hookup
