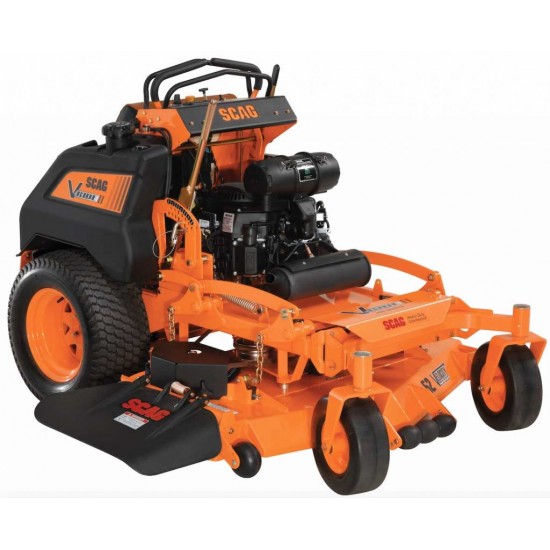

Features for the Scag SVR52V-25CV-EFI

The Scag V-Ride with 52” Velocity Plus cutting deck combines the power of a full sized zero turn with the compact design of a walk behind mower. Save space without sacrificing power. Smoothly glide through lawns at 11 MPH to cut grass more quickly. An 8 gallon fuel tank means less fill ups and more time to mow. Features such as a padded operator cushion and large diameter, padded steering controls are designed to increase comfort and help prevent fatigue during long work days.

• Kohler EFI Engine:25 HP Kohler EFI Engine gives you the power you need to mow all day long.
• Spacious Operator Platform:Coil suspension helps reduce operator fatigue by providing a comfortable ride. An extruded star pattern provides no-slip footing to keep you firmly in place while you mow.
• Velocity Plus Cutting Deck:52" 3 blade cutting deck helps you get the job done more quickly.
• Auxiliary Hydraulic Oil Cooler:Keeps oil temperatures within a safe operating level.
• Full Feature Instrument Panel:A convenient instrument panel contains the ignition key, PTO switch, drive and neutral lever, throttle, choke and hour meter all in one place!
• Operator Comfort Cushion:Adjustable for maximum comfort.
• Large Diameter, Padded Steering Controls:Another feature to help promote operator comfort and reduce fatigue.
• Deck Leveling Adjustment Brackets:Located on all four corners of the deck, the brackets allows for easy in-the-field deck leveling and pitch adjustment.
• No Plastic Pulleys:All pulleys on Scag mowers are made from metal, not plastic.
• Four Tie-Down Points:2 in the front and 2 on the rear for quick and easy loading and trailering.
• Custom-Cut Baffle:Customize the cutting deck to suit your needs.
• Double Steel Frame Construction:Provides years of trouble-free service. Built with a low center-of-gravity design to increase hillside stability.
• Heavy-Duty Blade Drive Spindles:Easily handles high horsepower and torque requirements for optimal performance.

Technical Specs for the Scag SVR52V-25CV-EFI

Engine
Engine Brand : Kohler
Starting System : Electric
Power : 25HP
Fuel Capacity : 8 Gallons
Engine : Kohler 25 HP EFI Engine

Cutting Deck
Spindles : Cast-Iron
Cutting Width : 52''
Cutting Height (min-max) : 1.5-4.5''
Cutting Height Steps : 1/4'' Increments
Deck Lift System : Manual
Blade Engagement : Electric
Blades : 3

Drive System
Speed Forward (min, max) : 0-11 mph
Speed Reverse (min, max) : 0-6 mph

Dimensions
Length (in.) : Foot Plate Down: 71.75''
Foot Plate Up: 67.75''
Width (in.) : Tracking Width: 41.75''
Chute Down: 65.25''
Chute in Transport Position: 53.75''
Height (in.) : 47.5''
Weight (lbs.) : 860 lbs.

Drive System
Tire Size : Rear Drive Wheels: 20'' x 10.5''-8''

Front Caster Wheels: 13'' x 6.5'' - 6''

Warranty
Engine : 3 years
Residential Warranty : 3 year/500 Hour Non Commercial Warranty
Commercial Warranty : 2 Year "Simply the Best" Commercial Warranty
