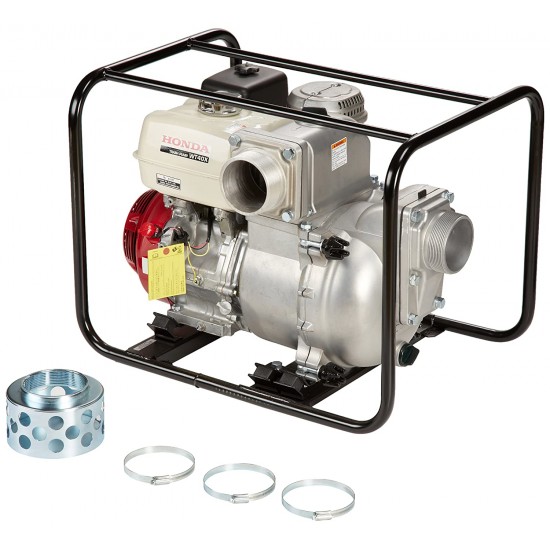

Use the Honda WT40XK2 Construction Trash Water Pump to clear a high volume of trash water on construction sites, allowing solids to pass up to 1 1/16 inches. Protection is provided with the heavy duty protective frame keeping the pump and engine safe from the rugged working conditions. Designed to improve priming and high discharge capacity, the uniquely shaped conical impeller adds durability and resists wear. A service tool is provided for quick removal and installation of the pump case, removal of the priming and drain plugs, and tightening/removal of the hose couplings.
Warranty |
|
---|---|
Residential Warranty | 3 Years |
Commercial Warranty | 3 Years |
Dimensions |
|
Length (in.) | 28.9 inches |
Width (in.) | 21.1 inches |
Height (in.) | 22.2 inches |
Weight (lbs.) | 172 lbs |
Engine Specification |
|
Engine Brand | Honda GX340 |
Displacement(cc) | 337cc |
Cylinder Bore | 3.2 inches |
Cylinder Stroke | 2.5 inches |
Compression Ratio | 8.0:1 |
Engine Type | 4-Cycle |
Pump |
|
Pump Style | Heavy-Duty Construction Trash Pump |
Pump Type | Trash Centrifugal Self-Priming |
Volute | Rigid Mounted Cast Iron w/ Stainless Wear Plate |
Impeller | Conical Cast Iron |
Mechanical Seal | Silicon Carbide/Silicon Carbide |
Priming Time | 160 sec at 16.4 ft. |
Gallons Per Minute | 433 gal./min. |
Inlet Diameter | 4 inches |
Total Head Lift | 85 ft. |
Suction Head Lift | 26 ft. |
Maximum Pressure | 37 psi |
Solids Handling | 1 1/16 inches |
Strainer | Part #78325-YG2-003 |
