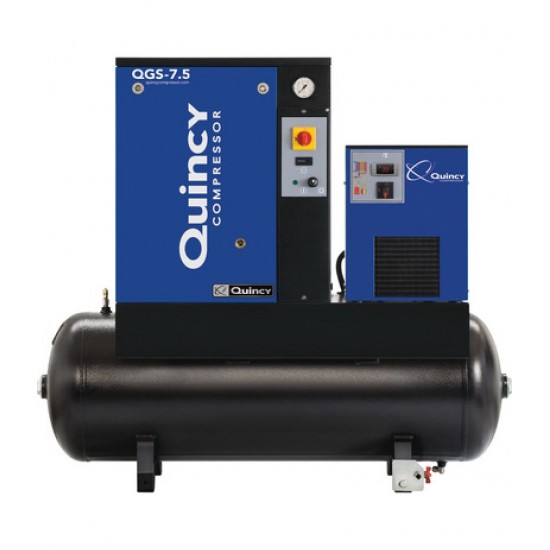

The Quincy QGS with Dryer offers superior compressed air performance in a compact, modern and quiet design. This extremely quiet rotary screw compressor features a continuous 100% duty cycle and operates without the high vibration and sound levels produced by typical reciprocating compressors. A small footprint and lower noise levels offer increased installation flexibility, making the QGS ideal for most applications. Compressor features an integrated refrigerated air dryer to purify compressed air by chilling it to condense and remove moisture, airborne dirt and oil. Comes equipped with a TEFC electric motor, V-belt drive, oil-injected twin screw pump, standard quiet enclosure, 8,000-hr. premium synthetic fluid, ASME certified receiver tank and more.

• (1) 7.5 HP, 230V, 1-phase oil-injected twin screw compressor with refrigerated air dryer, mounted on 60-gallon horizontal ASME tank

• High-efficiency intake filter
• TEFC electric motor (IP 55 wash down)
• Long life V-belt drive
• 1/2in. NPT discharge air connector
• Factory-filled 8,000-hour premium synthetic fluid
• 64 dBA for reduced sound fatigue in work area installations
• Designed for 100% duty cycle
• No transfer of vibration
• Low oil carryover protects tools
• Integrated refrigerated air dryer purifies compressed air by chilling it to condense and remove moisture, airborne dirt and oil
• ASME certified tank

• Simple, efficient start/stop control
• UL and cUL control panel compliant
• Fuse protected circuits
• Low sound canopy
• Less than 13 sq. ft. space required
• Turnkey solution: power in/air out
• Clean appearance with few connections
• One-year limited warranty (on-site parts and labor included)
• Register your purchase, use only genuine Quincy parts and extend warranty on the heat exchanger, airend and separator tank to 3 years (parts only)
• Have a Quincy authorized distributor do the start-up, use only genuine Quincy parts and extend the warranty on the drive motor, airend, heat exchanger and separator tank to 5 years (parts only)
