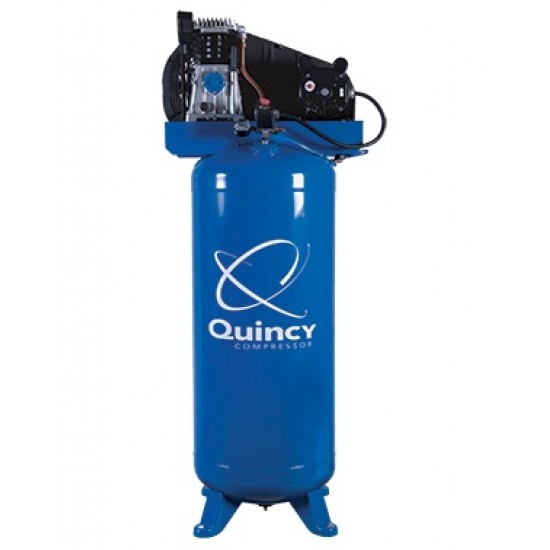

Durable Quincy 3.5 HP, 60-gallon vertical stationary single-stage compressor has a small footprint and produces higher CFM per horsepower to deliver more air to get jobs done faster. Limited warranty covers both consumer and commercial applications for extensive protection and low cost of ownership. Low RPM, extra-quiet pump has cast iron cylinder, crankshaft and valve plate, plus aluminum head for maximum heat dissipation and long life. 1-year limited warranty without extended warranty kit purchase. Purchase an extended warranty kit (Item# 42625) at the same time (on the same receipt) as your Quincy 60-gallon air compressor and register online within 10 days of receipt, and it will double the package warranty to 2 years and triple the pump warranty to 3 years (parts and labor).

• (1) 3.5 HP, 60-gallon vertical single-stage air compressor

• Features + Benefits

  • 3.5 HP, 230V 16 Amp motor
  • Produces 13.1 CFM @ 90 PSI
  • Produces 14.6 CFM @ 40 PSI
  • Cast iron pump has 10,000+ hour rating
  • Start-stop pressure switch
  • Compressor kicks off at 135 PSI and back on at 110 PSI
  • Large, easy-to-read tank pressure and regulator gauges

  • ASME safety valves
  • Fully enclosed belt guard
  • 1/2in. NPT air outlet
  • ASME vertical tank has manual drain
  • 30in.L x 22in.W x 68in.H
  • Comes with 40W oil in pump
  • Pump: 1250 RPM
  Key Specs

  Item#	362894
  Brand	Quincy Compressor
  Manufacturer's Warranty	12 months parts / 12 months labor
  Ship Weight	261.0 lbs
  HP	3.5
  Stage	Single
  Max. PSI	135
  Air Tank Size (gal.)	60
  CFM at 90 PSI	13.1
  CFM at 40 PSI	14.6
  Air Outlet Size (in.)	1/2

  Duty Cycle	50%
  Working Pressure (PSI)	110–135
  Motor Phase(s)	Single
  Amps	16
  Volts	230
  Motor RPM	1,250
  Drain System	Manual
  Pump Life (hrs.)	10,000
  Dimensions L x W x H (in.)	30 x 22 x
