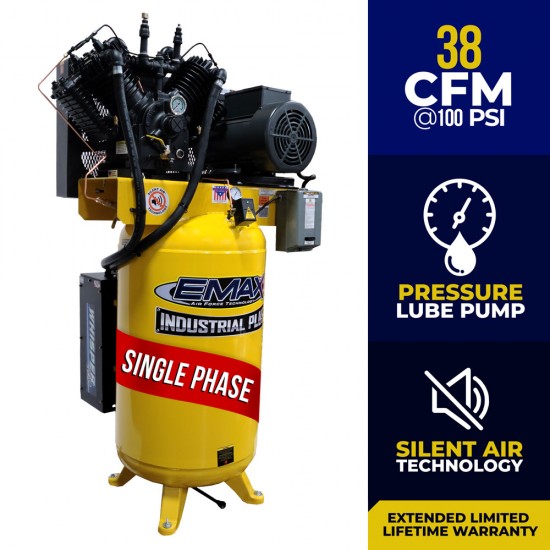

This EMAX Premium 10 HP, 2-Stage, 80-Gallon, Vertical Air Compressor with Silencer is designed for up to 50,000 hours of commercial or industrial use with proper maintenance. This unit features the Whisper 100 patent pending noise suppression system that reduces decibel readings by up to 25% and provides 5-layer filtration that's ideal for environments heavy with airborne particles. The 2-stage solid cast iron pump with dual-control design allows for automatic start/stop or continuous run. Solid steel, heavy-gauge rods with disc valves are built for maximum performance and longevity. Air steam technology operates at a temperature as much as 35% lower than comparable air compressors. The 10 HP motor features a low TEFC 1750 RPM and an 80 Amp startup for industrial jobs. The belt tension adjuster can be used to reduce vibration and extend belt life. The auto tank drain is controlled by a 110V timer to eliminate daily maintenance.

• (1) Air compressor

• Features + Benefits

  • Designed for up to 50,000 hours of commercial or industrial use with proper maintenance
  • Whisper 100 Series silencer to reduce decibel readings by up to 25% and provide 5-layer filtration
  • 2-stage cast iron pump with dual-control design for automatic or continuous run and 800 RPM pump
  • Solid steel, heavy-gauge rods with disc valves for maximum performance and longevity
  • Air steam technology for an operating temperature as much as 35% lower than comparable air compressors
  • TEFC 10 HP motor with low 1750 RPM, cool operation and low Amp draw

  • Belt tension adjuster to reduce vibration and extend belt life
  • Auto tank drain controlled by 110V timer to eliminate daily maintenance
  • UL and CSA approved
  • Magnetic starter
  • 5-year full parts warranty
  • Dual control for continuous run or start/stop operation
  Key Specs

  Item#	54656
  Brand	Emax
  Manufacturer's Warranty	5 year limited warranty
  Ship Weight	988.0 lbs
  Volts	230
  Max. PSI	175
  Motor Phase(s)	Single
  Air Tank Size (gal.)	80
  CFM at 90 PSI	38
  CFM at Max. PSI	30
  Air Outlet Size (in.)	3/4
  Air Outlets (qty.)	1
  Duty Cycle	70%
  Working Pressure (PSI)	145
  Tank Fill Time (min.)	4

  Regulator Included	No
  Stage	2
  Oil Required	Yes
  Low Oil Shutdown	No
  Lubrication System	Splash
  HP	10
  Amps	40
  Motor RPM	1,750
  Drain System	Automatic
  Pump Life (hrs.)	50,000
  Pump Material	Solid cast iron
  Dimensions L x W x H (in.)	38 x 42 x 72
  Weight (lbs.)	810
